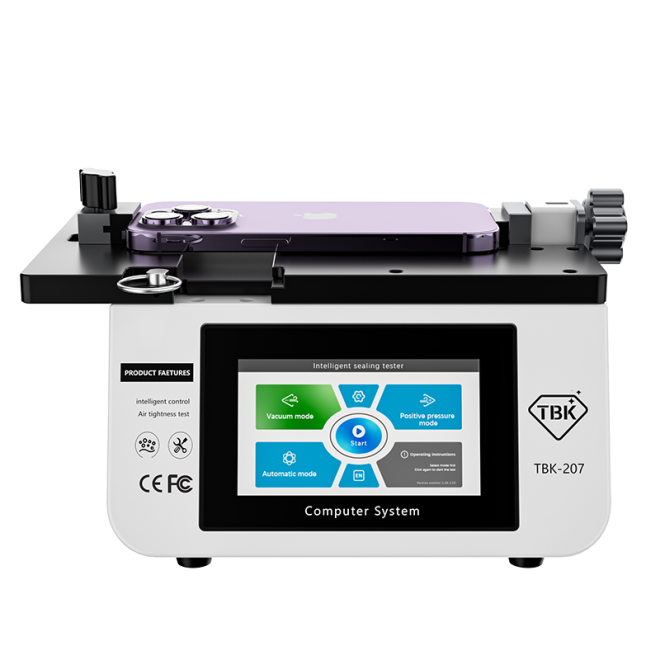

TBK-207 Portable Intelligent Air Tightness Detector Built-in Vacuum Pump for Mobile Phone Repair

TBK-207 Portable Intelligent Air Tightness Detector Built-in Vacuum Pump for Mobile Phone Repair

Note: Price is for reference only, If you are interested, please contact us: sales@recoresolutions.com

Features:

TBK-207 intelligent air tightness detector, lightweight and portable, multi-purpose, easy to use, multi-brand testable pressure limit.

In addition to the mini, the performance is also very strong.

Built-in vacuum pump, first test the tightness of the product under negative pressure, then carry out positive pressure automatic detection of product.

Negative/positive pressure maximum and minimum pressure values can be set.

Adjustable platform, multi-directional mobile phone detection.

HD display, fully intelligent detection, vacuum, positive pressure, and automatic modes.

Vacuum mode, negative pressure testing product air tightness.

Positive pressure mode, detecting and diagnosing product air leaks.

Automatic mode, negative pressure first and then positive pressure detection and diagnosis.

The air tightness testing repair station can support all series of models.

Control stress and your cell phones within the pressure range keep the phone undamaged.

Specification:

Brand: TBK

Mode: 207

Voltage: 220V

Power: 20W

Waterproof: IP68

Pressure: -40~20Kpa

Sensor Accuracy: ±0.1Kpa

Control System: PLC automatic control

Product Size: 200*180*140mm

Net weight: 2.4KG

Package includes:

1 x Air Tightness Detector

1 x Power Cable

Notes:

This product is an air leak tester, suitable for mobile phones to test the sealing machine.

The machine uses vacuum (negative pressure) and positive pressure to inflate (positive pressure) connect to the product by way, and then cut off the gas path, if the product is leaked, the product pressure inside the product will change.

When the pressure change value is lower than the set pressure, the instrument will check If the test shows that it is unqualified, if the pressure value remains unchanged, it is considered qualified.
