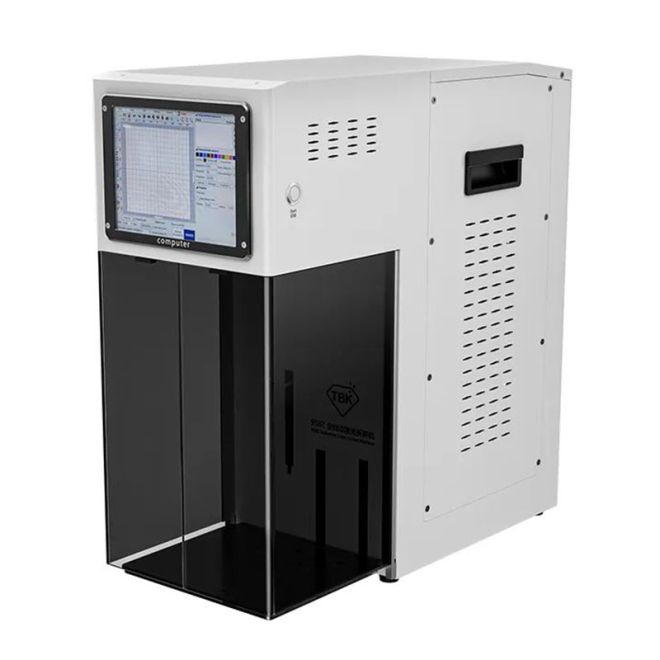

TBK958Z UV Purple Light Laser Engraving Machine for Removing Front and Back Glass of Mobile Phone

TBK958Z UV Purple Light Laser Engraving Machine for Removing Front and Back Glass of Mobile Phone

Note: Price is for reference only, If you are interested, please contact us: sales@recoresolutions.com

Features:

Built-in HD computer, Bluetooth keyboard and fume extractor.

Automatic focus, Platform automatic lifting up/down.

Laser head fixed and reliable

One-button start,easy to operate

Auto positioning mold for iphone glass back cover

With wireless keyboard and mouse

Separate front or back cover, LCD Assembly, and bracket frames for all models, including iPhone 8 to 12 Pro Max

And also ok for another brand Front door or back cover separation. such as Samsung /Huawei /Oppo /Vivo /Xiaomi /LG etc.

Laser Parameters  (Purple light):

Laser power (Watts): 3.0W, Air cooling

Laser wave length: 1064nM

Laser marking Precision: <0.001mm

Repeat laser marking precision: ≤0.001mm

Laser speed: ≤10000mm/s

Laser marking depth: 0.015~0.5 mm

Max marking size: 175*175mm

Marked line width: 0.05~0.1mm

Height of the object carved by laser (mm): 85

Specification:

Brand: TBK

Mode: 958Z

AC input: 110V/60Hz or 220V/50Hz

Product size (mm): 290*570*598

Computer screen size (cm): 20*15 cm

Product handling: 500 W

Net weight (kgs): 34

Gross weight (kgs): 45

Package size (cm): 68*40*70

Package includes:

1 x TBK958Z UV Purple Light Laser Engraving Machine
