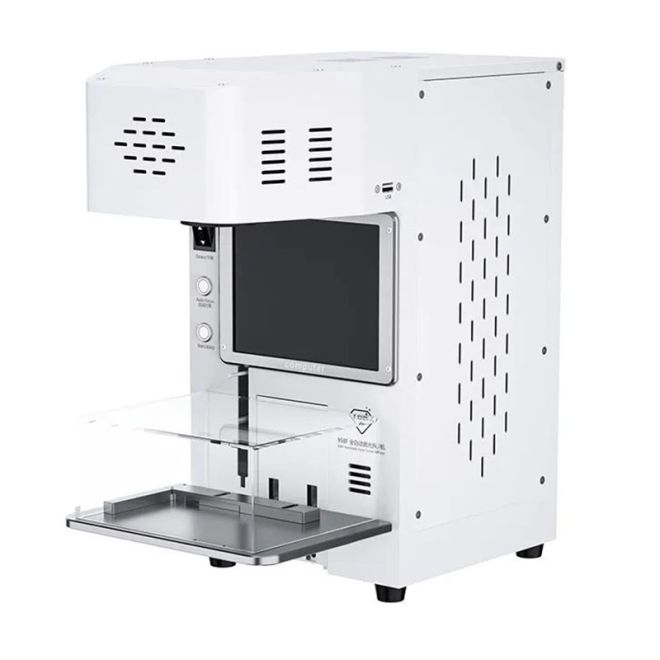

TBK-958F Mini 20W Fiber Laser Machine For APH 8 to 13 Pro Max Back Glass Remove

TBK-958F Mini 20W Fiber Laser Machine For iPhone 8 to 13 Pro Max Back Glass Remove

Note: Price is for reference only, If you are interested, please contact us: sales@recoresolutions.com

Features:

1. 20W, much faster to remove the back glass than other similar machine.

2. Small weight and size, very compact to occupy small working place.

3. There is built-in fume extractor inside.

4. Separate back cover and braket frames for all models , including iPhone 8 to 13 Pro Max

    and also suitable for other brand back cover separation such as Samsung/ Huawei/ Oppo /Vivo /Xiaomi/ LG etc.

5. Built-in computer , software and all files are included , Automatic focus length, no need measurement.

6. Laser on the phone directly , no damage for motherboard or battery , no need open whole phone.

7, Automatic alignment fixture mode is included ,100% accurate , no need to adjust the location each time.

8. Built-in smoke exhaust device.

Description:

Machine is newest model, it can use for Mobile phone Back Glass Remover, Laser engraving and marking.

Built-in computer and Precise drawing .

Selected high speed galvanometer.Sensor autofocus.

One-button start-up and operation simple

How to use it:

1. Plug in the power cord and turn on the power switch;

2. Remove the lens cap of the high-speed galvo mirror;

3. Turn on the computer switch (Computer key);

4. Call up the corresponding drawings;

5. Place the mobile phone along the fixed fixture;

6. Press the Focus button to automatically adjust the focal length;

7. Turn on the red light indicator, aim at the red light, and adjust the parameters;

8. Start marking button to start marking;

9. Remove the mobile phone after the marking is finished, and you can disassemble the machine.

Note: There is no matching mold set for this product. If you need a mold set, please contact the shop customer service and purchase it separately.

Package Contains:

1 x TBK-958F Machine+Smoking Hood;

1 x Metal Card;

1 x Power Cord;

1 x One Set of Allen Wrench;

1 x Wireless Mouse and Keyboard.
